Aluminium roller blinds rail from Retop

Aluminium roller blinds rail, greatly facilitates the installation of roller linear guide, making the design of engineers convenient. And the production and manufacture of equipment more convenient.

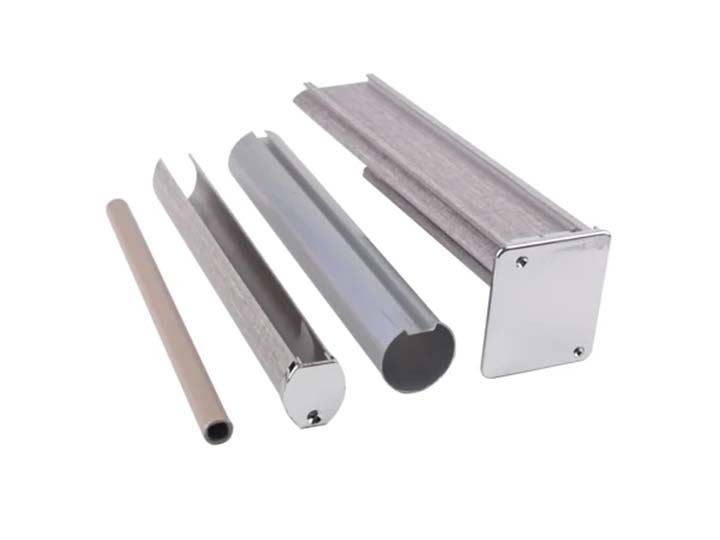

Retop aluminium roller blinds rail

Your reliable China aluminium roller blinds rail manufacturer and supplier.
With more than 20 years’ experience, we are one of the professional aluminum profile manufacturers and suppliers in China. We have been focusing on aluminum profile wholesale, OEM and ODM services. Please feel free to contact us for more discounts!

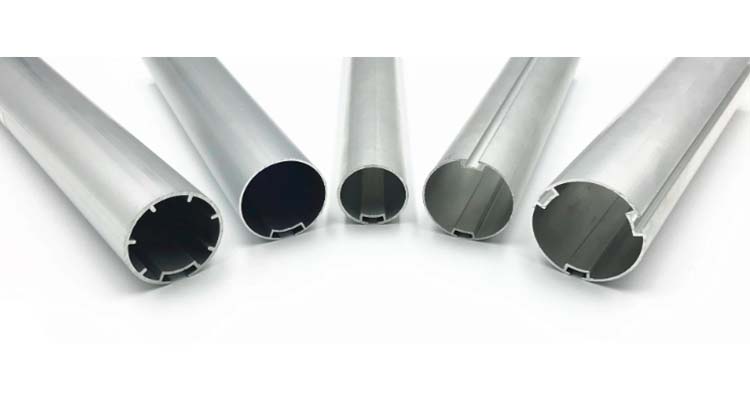

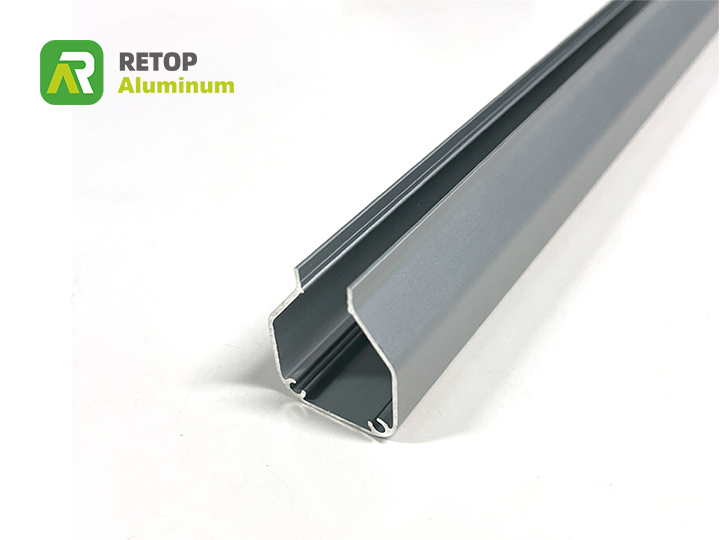

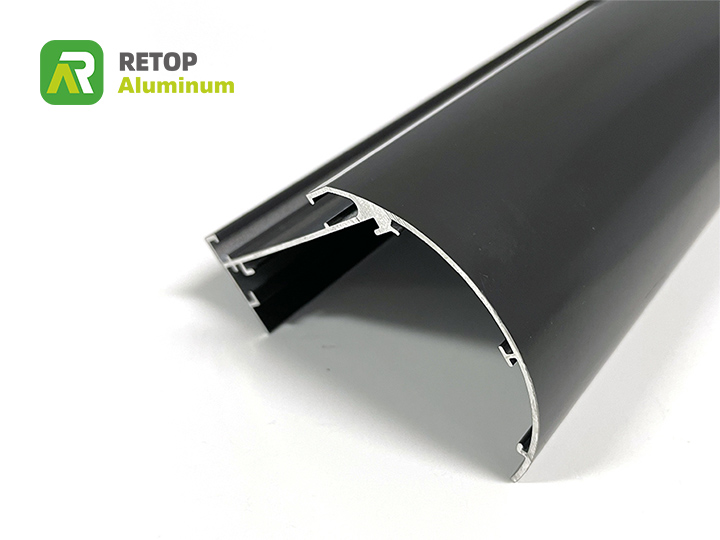

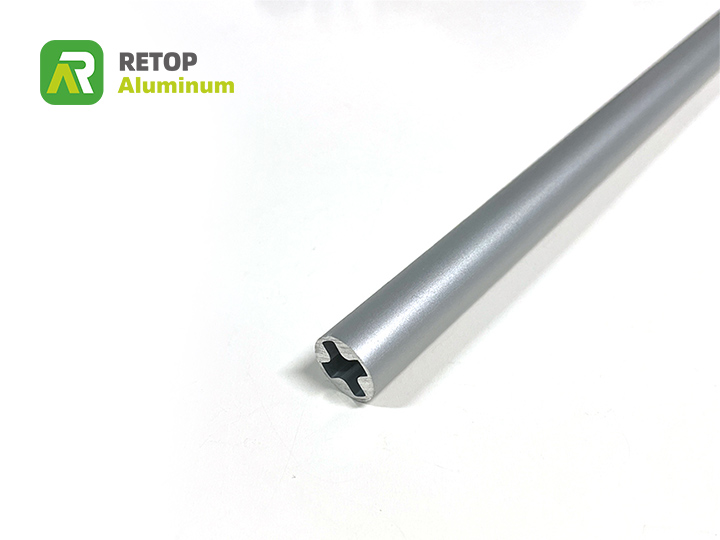

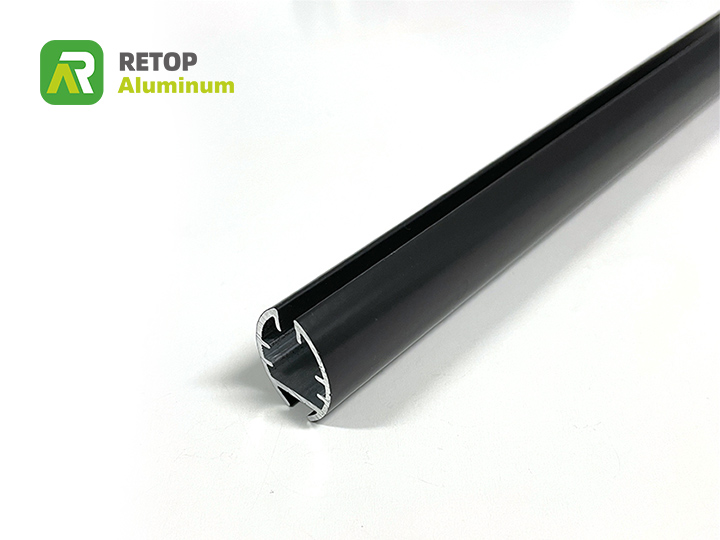

Description of the aluminium roller blinds rail

Aluminum profile roller guide, also known as aluminium roller blinds rail, is a device that can hold, carry and guide moving equipment and reduce its friction. Aluminum profile slide rail consists of guiding parts and moving parts. It has a wide range of applications. The grooves or bumps on the surface are used to fix and guide the moving devices, such as doors, windows, elevators, drawers, etc.

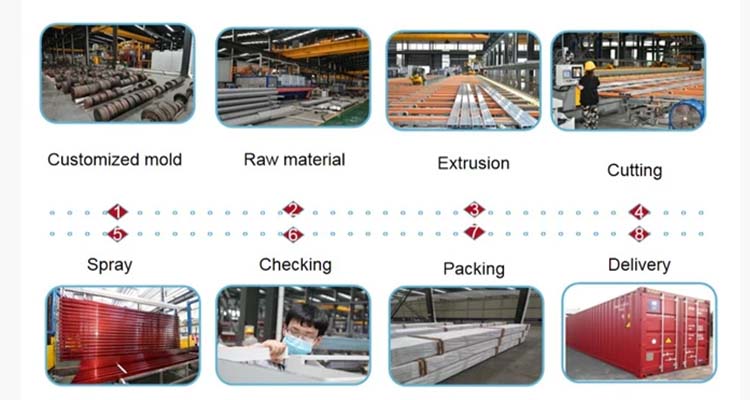

Production processing for aluminium roller blinds rail

Casting – Extrusion – Aging – Oxidizing/electrophoresis – Fluorocarbon spraying – Simulation of texture -Insulation strips –Packaging.

Aluminum profile for roller blinds parameter

Installation of roller blinds rail aluminum profiles

1. Single V guide rail

A: Each single V-type guide rail is fixed on the aluminum profile by T-type guide bar, one of which is with rack and pinion, which can be conveniently used in pinion and rack and pinion transmission mode.

B: Each single V-guide is directly mounted on the flat mounting surface of industrial aluminum profiles, one of which is with rack and pinion, which can facilitate the adoption of pinion, rack and pinion transmission mode.

2. Double V guide rail

A: The guide rail is directly mounted on the flat mounting surface of the industrial aluminum profile; this guiding aluminum profile has a hollow cavity, which can be easily formed into a loop by belts, chains and so on.

B: The T-slot is embedded in the T-slot of the industrial aluminum profile. The T-slot has threaded holes and the guide is firmly bolted to the aluminum profile.

C: The aluminum mounting plate is fixed to the industrial aluminum profile with T-nuts and bolted to the mounting plate. The guide profiles have hollow cavities and can also be easily passed through belts, chains, etc. to form loops.

Aluminum profile roller blinds rails characteristics

1. Good rigidity, large span point support can be realized.

2. light load capacity, load capacity of tens of kilograms and below.

3. Long service life.

4. Low cost.

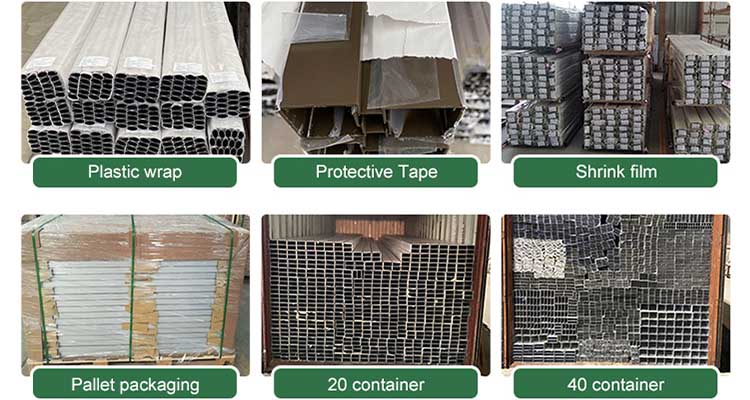

Packaging for roller blinds rail aluminum profiles

1. Retop standard packaging (3M – 6M)

Long distance transportation is easy to cause wear and tear to the products, Retop provides high quality packaging to protect the products.

For the length of 3m-6m aluminum profiles, we use internal plastic film or plastic bag packaging, external waterproof kraft paper packaging to protect the product.

2. Retop customized packaging

Retop for different customer needs to provide a variety of special packaging.

3. Retop small pieces of aluminum packaging

Internal packaging: each piece has a protective plastic bag.

External packaging: cardboard boxes and wooden frame.

4. Retop finished product packaging

Internal packaging: each piece of PE foam.

Outer packaging: each piece of wooden frame.

Why choose us?

We have more than 50000 molds in stock. If our aluminum roll-up guide is not suitable for you, you can provide us with your samples or technical drawings and we can extrude according to your design.

Retop aluminum’s goal is to provide the best price, the best quality and the best lead time in the aluminum extrusion industry. Average turnaround time is 6 to 8 weeks for brand new shapes and 4 weeks for special orders of stock dies. Lead times for stock aluminum angle or channel are 2-3 days.

Retop offers a wide range of aluminum angle or channel in various materials, such as 6061 series and 6063 series.

Please contact us for more information!
